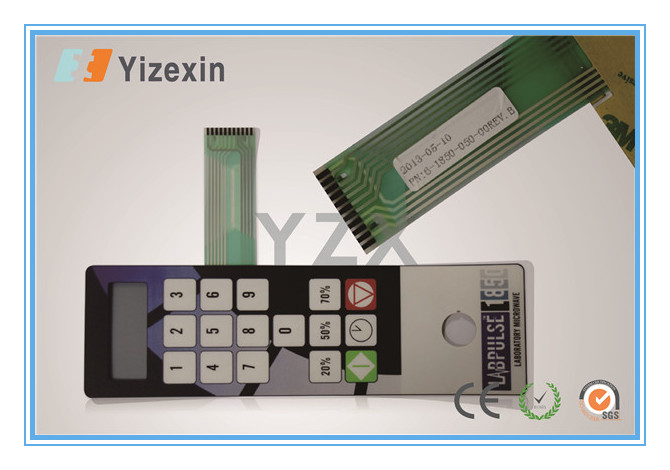

Description

Specification:

1 Overlay Materials: The most commonly used materials are polyester (PET) and polycarbonate (PC).

2 Rear Adhesive: 3M 467MP, 3M 468MP, etc.

3 Matching color: Pantone and RAL color matching system.

4 Gloss, semi-gloss or matte, Non-tactile, poly dome or metal dome.

5 Standard Tolerances: +/-.010 inch (+/-0.25mm).



Performance:

Electrical:

Operating Voltage: 0~35 V DC.

Operating Current: 100 MA Max.

Operating Contact resistance: Less than 100 Ohms typical.

Contact Bounce: Less than 5 Milliseconds typical.

Conductors: Printed silver conductive inks or carbon blend.

RFI and ESD Shielding: Available in most configurations.

Mechanical:

Life Expectancy: 1,000,000 actuations per switch position.

Actuation Force: 6~24 ounces (170~680g), Range depending on customer specification.

Switch Travel: .005" to .030" (0.1~0.8mm) typical.

Overall Thickness: .020" to .050" (0.5~1.3mm) typical.

Environmental:

Storage Temperature: -40°C (-40°F) to +70°C (158°F).

Storage Altitude: Sea level to 35,000 feet.

Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F).Can be designed to operate in most environments.

Humidity: No delamination after 24 hours at 80°C and 90%RH.



Applications:

1. Display / Notebook PC & Tablet PC / Flat panel display

2. Smart phone / Cell Phone

3. Flat screen TV / Professional TV

4. Printer / Scanner / FAX machine / Copier

5. Sound Box / Acoustics

6. MP3, MP4

7. CD/ DVD

8. Digital camera

9. Robot / Industrial / Projector / Handy terminal / Amusement

10. Car electronics

11. Toy for children

12. AV equipment / Medical equipment / Digital measurement instrument



Features:

1. Beautiful appearance, rich and bright in color.

2. Small size, light weight and good tactility.

3. Low cost, high lifespan.

4. Easy to operate, intuitive, safe and reliable, in-house 100% functionally tested.

5. Customized specification is available and keys can make different shapes.

6. Tightness is good, moisture-proof, dustproof, anti-corrosion and erosion of harmful gas-proof.
